Create a Realtime Data Stream with Apache Storm

Apache Storm is a distributed stream processing computation framework. It integrates with various systems and libraries, including Apache Kafka, Apache Cassandra, Redis, Amazon Kinesis, Kestrel, RabbitMQ/Advanced Message Queuing Protocol (AMQP), and Java Message Service (JMS).

This guide explains what Apache Storm is and how to create a real-time data stream with it.

Apache Storm Components

This section describes the key components and terminology used in Apache Storm:

• Tuples: In Storm, tuples serve as the main data structure. Tuples are named lists that can contain any type of values and are dynamically typed. They have helper methods to retrieve field values without casting. By default, Storm can serialize tuple values for primitives, strings, and byte arrays, though a custom serializer is needed for other types.

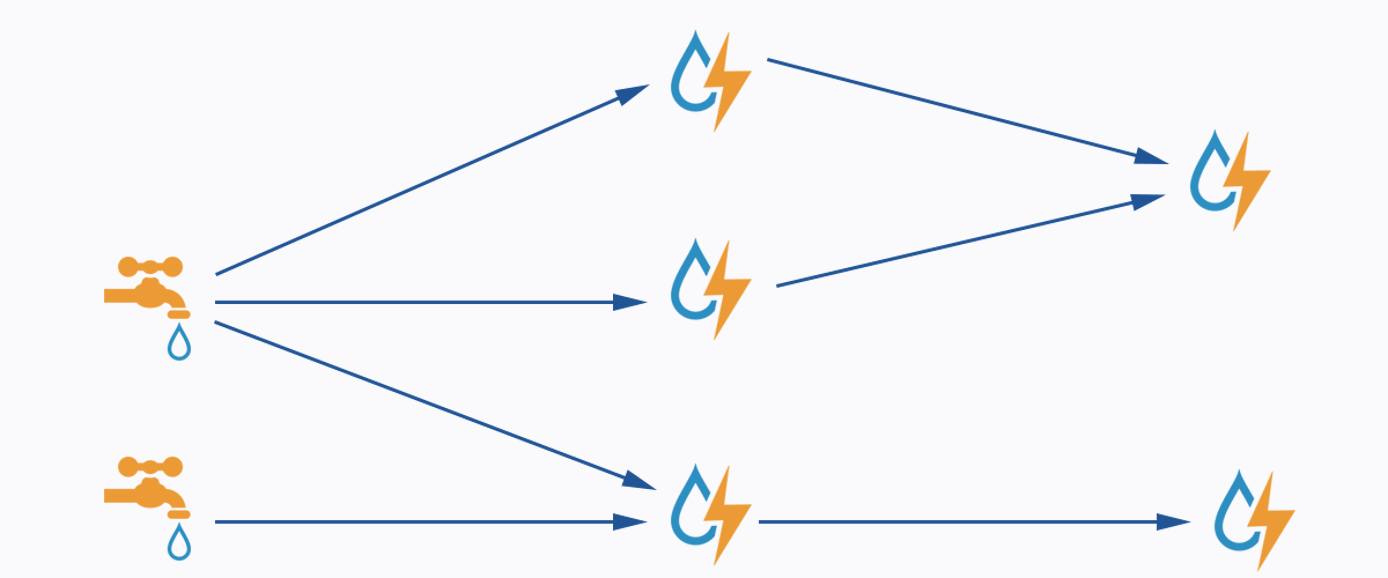

• Topologies: A Storm topology is the logical framework for a real-time application. It functions similarly to a MapReduce job, but is designed to run indefinitely. Topologies are composed of spouts and bolts connected by stream groupings, as illustrated in the diagram below:

• Streams: A stream is a sequence of tuples processed in parallel, capable of containing various data types. Each stream has a defined schema that specifies the fields within its tuples and can be assigned a unique ID.

• Spouts: A spout acts as a source of streams in a topology. It reads tuples from an external source and emits them into the topology. Spouts are categorized as either reliable or unreliable. Reliable spouts have the capability to replay a tuple if it fails to be processed, whereas unreliable spouts do not retain the tuple after it is emitted.

• Bolts: Bolts perform the processing tasks in Storm. They perform various operations, including filtering, aggregations, joins, and interactions with databases. Bolts can transform streams, and complex transformations often involve multiple bolts working together.

• Nodes: Apache Storm consists of two primary types of nodes:

  • Nimbus (Master Node): The central component responsible for running Storm topologies. Nimbus analyzes the topology and determines which tasks to execute.

  • Supervisor (Worker Node): This node manages worker processes, monitors their health, restarts them if necessary, and ensures they are running correctly. It receives heartbeats from workers, reports to Nimbus, distributes tasks, and facilitates communication between workers and Nimbus. The Supervisor acts as a bridge between Nimbus and workers, ensuring tasks are executed correctly and keeping Nimbus updated on task status.

Before You Begin

1. Follow the instructions in our Creating a Compute Instance guide. Use the following settings to create the four necessary instances to run an Apache Storm cluster: one for ZooKeeper, one for Nimbus, and two Storm Supervisors:

   • Images: Select the newest Long Term Support (LTS) version of Ubuntu available for all nodes. The examples in this guide use Ubuntu 24.04 LTS.

   • Region: Choose the closest to you, or to the bulk of your users as measured by ping times or geographic proximity. The examples in this guide use Miami.

   • Linode Plan: Open the Shared CPU tab and create the following plans for each node:

     • ZooKeeper Node: Linode 2 GB
     • Nimbus Node: Linode 4 GB
     • Storm Supervisor Node 1: Linode 4 GB
     • Storm Supervisor Node 2: Linode 4 GB

   • Linode Label Enter a descriptive label for the instances. The examples in this guide use:

     • ZooKeeper Node: storm-zoo
     • Nimbus Node: storm-nimbus
     • Storm Supervisor Node 1: storm-super-1
     • Storm Supervisor Node 2: storm-super-2

2. Before continuing, take note of the Public IP Address for each node.

3. Verify that you can connect to your new instances via SSH. Be sure to replace the IP_ADDRESS placeholders with the Public IP Address of the appropriate instance:

   Local Machine

   ssh root@storm-zoo_IP_ADDRESS
   Local Machine

   ssh root@storm-nimbus_IP_ADDRESS
   Local Machine

   ssh root@storm-super-1_IP_ADDRESS
   Local Machine

   ssh root@storm-super-2_IP_ADDRESS

Install Java on All Nodes

Both Python and Java are prerequisites for Storm and ZooKeeper. Fortunately, Ubuntu 24.04 LTS comes with Python 3.12.3 installed by default, so you only need to install Java. Follow the steps below to install Java on all four instances.

1. Update the package manager and upgrade the packages, then reboot the instances:

   storm-zoo, storm-nimbus, storm-super-1, and storm-super-2

   apt update && apt upgrade && reboot

2. Once the reboots are complete, reconnect to each instance via SSH.

3. Install a Java Development Kit (JDK):

   storm-zoo, storm-nimbus, storm-super-1, and storm-super-2

   apt install default-jdk

4. Verify the Java installation and display the installed version:

   storm-zoo, storm-nimbus, storm-super-1, and storm-super-2

   java --version

   openjdk 21.0.4 2024-07-16
   OpenJDK Runtime Environment (build 21.0.4+7-Ubuntu-1ubuntu224.04)
   OpenJDK 64-Bit Server VM (build 21.0.4+7-Ubuntu-1ubuntu224.04, mixed mode, sharing)

Install ZooKeeper

Follow the steps in this section to install ZooKeeper on the storm-zoo instance.

1. Use wget to download the latest stable version of ZooKeeper available on the ZooKeeper release page. The examples in this guide use ZooKeeper version 3.9.2, though yours may be newer, so adjust the commands below accordingly:

   storm-zoo

   wget https://dlcdn.apache.org/zookeeper/zookeeper-3.9.2/apache-zookeeper-3.9.2-bin.tar.gz

2. Unpack the ZooKeeper tarball:

   storm-zoo

   tar -zxvf apache-zookeeper-3.9.2-bin.tar.gz

3. Move the extracted directory to /opt/zookeeper:

   mv apache-zookeeper-3.9.2-bin /opt/zookeeper

4. Create a zoo.cfg ZooKeeper configuration file:

   storm-zoo

   nano /opt/zookeeper/conf/zoo.cfg

   Give the file the following three lines as content:

   File: /opt/zookeeper/conf/zoo.cfg

   1 2 3

   tickTime=2000 dataDir=/var/zookeeper clientPort=2181

   When done, press CTRL+X, followed by Y then Enter to save the file and exit nano.

5. Create the /var/zookeeper directory for data:

   storm-zoo

   mkdir /var/zookeeper

6. Start ZooKeeper:

   storm-zoo

   /opt/zookeeper/bin/zkServer.sh start

   /usr/bin/java
   ZooKeeper JMX enabled by default
   Using config: /opt/zookeeper/bin/../conf/zoo.cfg
   Starting zookeeper ... STARTED

Set Up Storm on Nimbus and Supervisor Instances

This section sets up Apache Storm on the storm-nimbus, storm-super-1, and storm-super-2 instances.

1. Download the latest Storm release on each instance. This guide uses Storm version 2.6.3 though yours may be more recent, so adust the commands accordingly.

   storm-nimbus, storm-super-1, and storm-super-2

   wget https://dlcdn.apache.org/storm/apache-storm-2.6.3/apache-storm-2.6.3.tar.gz

2. Once the Storm tarballs are present, unpack them:

   storm-nimbus, storm-super-1, and storm-super-2

   tar -zxvf ~/apache-storm-2.6.3.tar.gz

3. Move the extracted directories to /opt/storm:

   storm-nimbus, storm-super-1, and storm-super-2

   mv apache-storm-2.6.3 /opt/storm

4. Open your .bashrc file:

   Local Machine

   nano ~/.bashrc

   Append the following lines the end of the file to add Storm’s bin directory to your PATH:

   1 2	#Set PATH for Storm export PATH="/opt/storm/bin:$PATH"

   When done, press CTRL+X, followed by Y then Enter to save the file and exit nano.

5. Apply the changes to .bashrc:

   Local Machine

   source ~/.bashrc

6. Verify the Storm installation by checking the version:

   storm version

   Running: java -client -Ddaemon.name= -Dstorm.options= -Dstorm.home=/opt/storm -Dstorm.log.dir=/opt/storm/logs -Djava.library.path=/usr/local/lib:/opt/local/lib:/usr/lib:/usr/lib64 -Dstorm.conf.file= -cp /opt/storm/*:/opt/storm/lib/*:/opt/storm/extlib/*:/opt/storm/extlib-daemon/*:/opt/storm/conf org.apache.storm.utils.VersionInfo
   Storm 2.6.3
   URL https://github.com/apache/storm.git -r 72f95026501fec6dcd85a8383fb4767db47d3a5b
   Branch v2.6.3
   Compiled by rui on 2024-07-16T14:21Z
   From source with checksum 4efe8317e462162b8d2b4a63978c4a6

Edit the Storm Configuration on Nimbus and Supervisor Instances

The storm.yaml configuration file specifies the local directory for Storm’s operation and defines the connection settings for ZooKeeper and Nimbus.

1. Open the storm.yaml file on the storm-nimbus, storm-super-1, and storm-super-2 instances:

   storm-nimbus, storm-super-1, and storm-super-2

   nano /opt/storm/conf/storm.yaml

   Add the following lines to the end of the file. Replace storm-zoo_IP_ADDRESS with the actual IP address for your storm-zoo instance and storm-nimbus_IP_ADDRESS with the actual IP address for your storm-nimbus instance.

   File: conf/storm.yaml

   1 2 3 4

   storm.zookeeper.servers: - "storm-zoo_IP_ADDRESS" nimbus.seeds: ["storm-nimbus_IP_ADDRESS"] storm.local.dir: "/var/storm"

   This defines the IP addresses of the ZooKeeper and Nimbus instances and sets the /var/storm directory for Storm’s state and temporary files. Refer to the Storm Setup Guide for more details.

   When done, press CTRL+X, followed by Y then Enter to save the file and exit nano.

2. Create the /var/storm directory for Storm’s application data:

   storm-zoo

   mkdir /var/storm

Start Storm

1. On the storm-super-1 and storm-super-2 instances, execute the following command to run Storm as a Supervisor daemon:

   storm-super-1 & storm-super-2

   /opt/storm/bin/storm supervisor &

2. On the storm-nimbus instance, execute the following command to run Storm as a nimbus daemon:

   storm-nimbus

   /opt/storm/bin/storm nimbus &

3. Also run the Storm UI web server on the storm-nimbus instance:

   storm-nimbus

   /opt/storm/bin/storm ui &
   Note

   When done, you can press CTRL+D to logout and return to your local machine’s command line.

4. Open a web browser on your local machine and navigate to port 8080 of the storm-nimbus instance’s public IP address:

   Local Machine

   http://storm-nimbus_IP_ADDRESS:8080

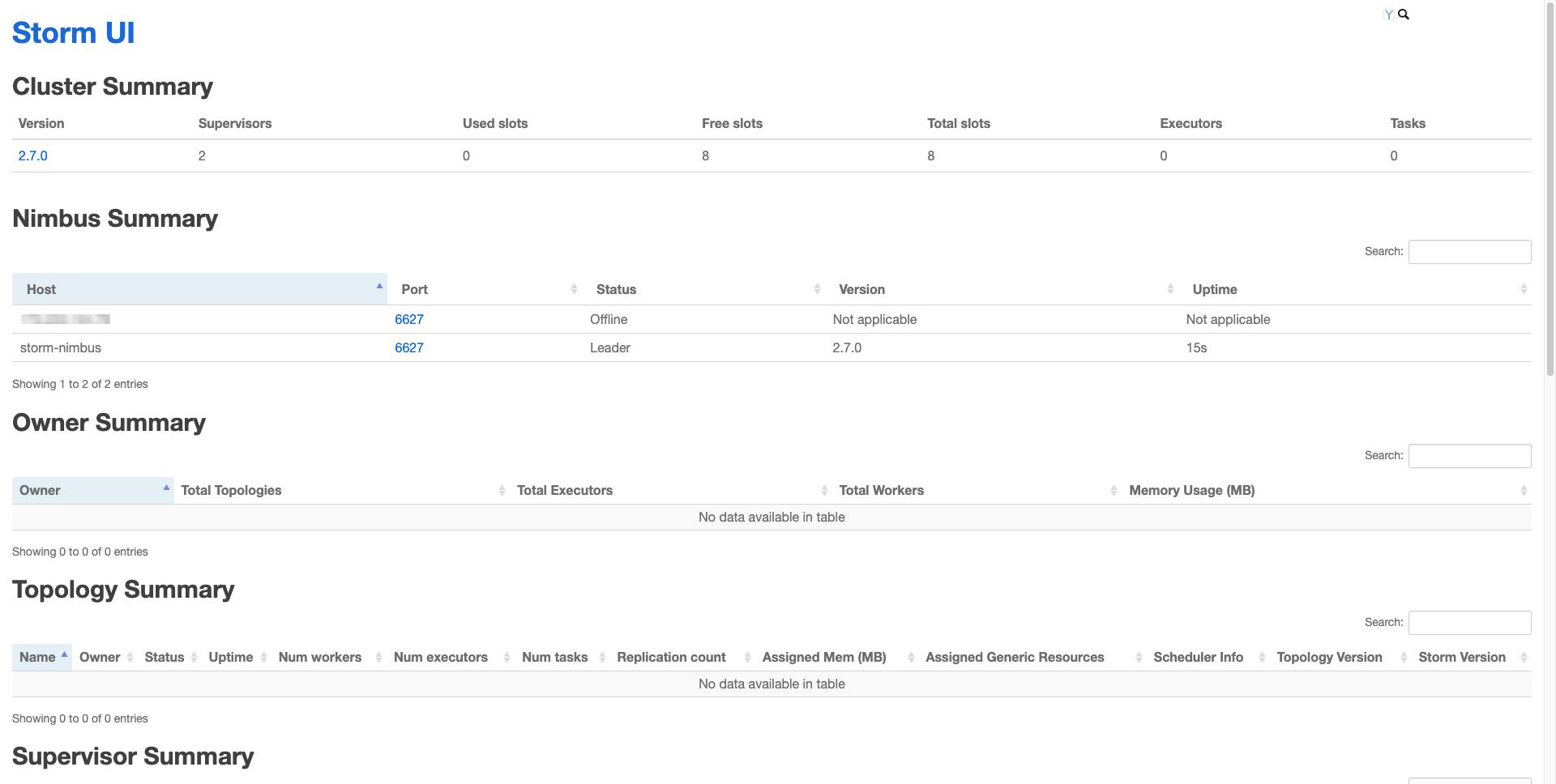

   The web site at that address shows the status of the cluster:

Create the Message Stream

The screenshot above shows no topologies, and therefore has no message streams. The storm-starter sample, located in the apache-storm-2.6.3/examples/ directory, can solve this. It contains a variety of Storm topologies, ranging from a very simple example called WordCount, to far more complicated examples.

1. Use wget to download the latest version of Apache Maven to the storm-nimbus instance. This guide uses Maven version 3.9.8, though yours may be newer.

   storm-nimbus

   wget https://dlcdn.apache.org/maven/maven-3/3.9.8/binaries/apache-maven-3.9.8-bin.tar.gz

2. Unpack the downloaded archive file:

   storm-nimbus

   tar xzvf apache-maven-3.9.8-bin.tar.gz

3. Move the extracted directory to /opt/maven:

   storm-nimbus

   sudo mv apache-maven-3.9.8 /opt/maven

4. Open your .bashrc file:

   storm-nimbus

   nano ~/.bashrc

   Add Maven’s bin directory to your PATH:

   File: .bashrc

   1 2	#Set PATH for Maven export PATH="/opt/maven/bin:$PATH"

   When done, press CTRL+X, followed by Y then Enter to save the file and exit nano.

5. Apply the changes to .bashrc:

   storm-nimbus

   source ~/.bashrc

6. Verify the Maven installation by checking the version:

   storm-nimbus

   mvn -v

   Apache Maven 3.9.8 (36645f6c9b5079805ea5009217e36f2cffd34256)
   Maven home: /home/aovera/apache-maven-3.9.8
   Java version: 21.0.4, vendor: Ubuntu, runtime: /usr/lib/jvm/java-21-openjdk-amd64
   Default locale: en_US, platform encoding: UTF-8
   OS name: "linux", version: "6.8.0-39-generic", arch: "amd64", family: "unix"

7. Issue the following commands to change into the /opt/storm/examples/storm-starter directory and build a Storm “uber JAR”:

   storm-nimbus

   cd /opt/storm/examples/storm-starter
   mvn package

   Wait a few minutes and you should see a success message towards the bottom of the output:

   ...
   [INFO] BUILD SUCCESS
   ...

   The JAR file you built is located at /opt/storm/examples/storm-starter/target/storm-starter-2.6.3.jar.

Submit the Example Topology

The storm jar command allows you to choose a topology from the “uber JAR” and submit that to your cluster.

1. Use the following command on the storm-nimbus instance to submit the WordCount topology:

   storm-nimbus

   storm jar /opt/storm/examples/storm-starter/target/storm-starter-2.6.3.jar org.apache.storm.starter.WordCountTopology WordCount

2. Return to your Web browser refresh the page located at port 8080 of the storm-nimbus instance:

   http://storm-nimbus_IP_ADDRESS:8080

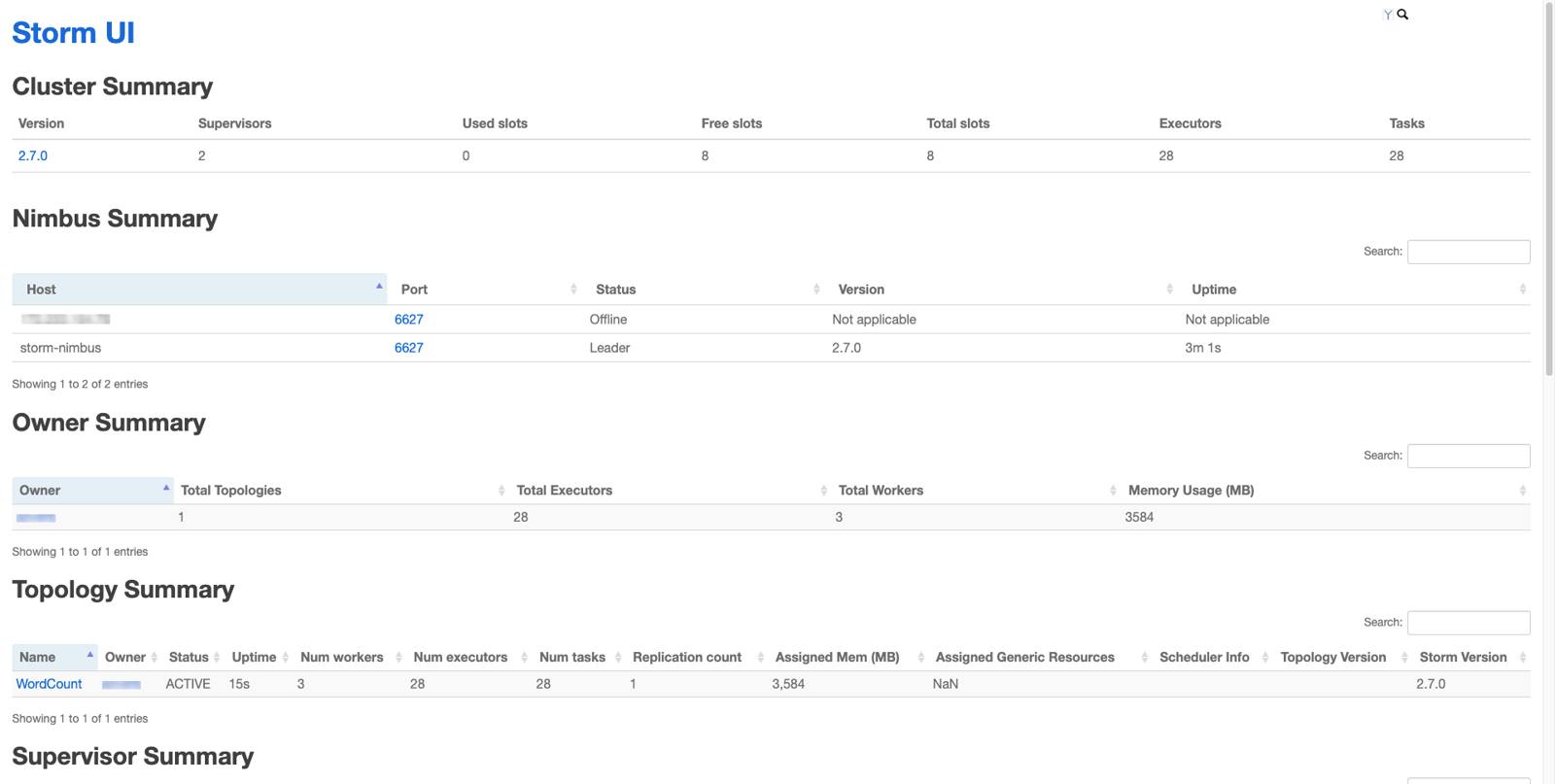

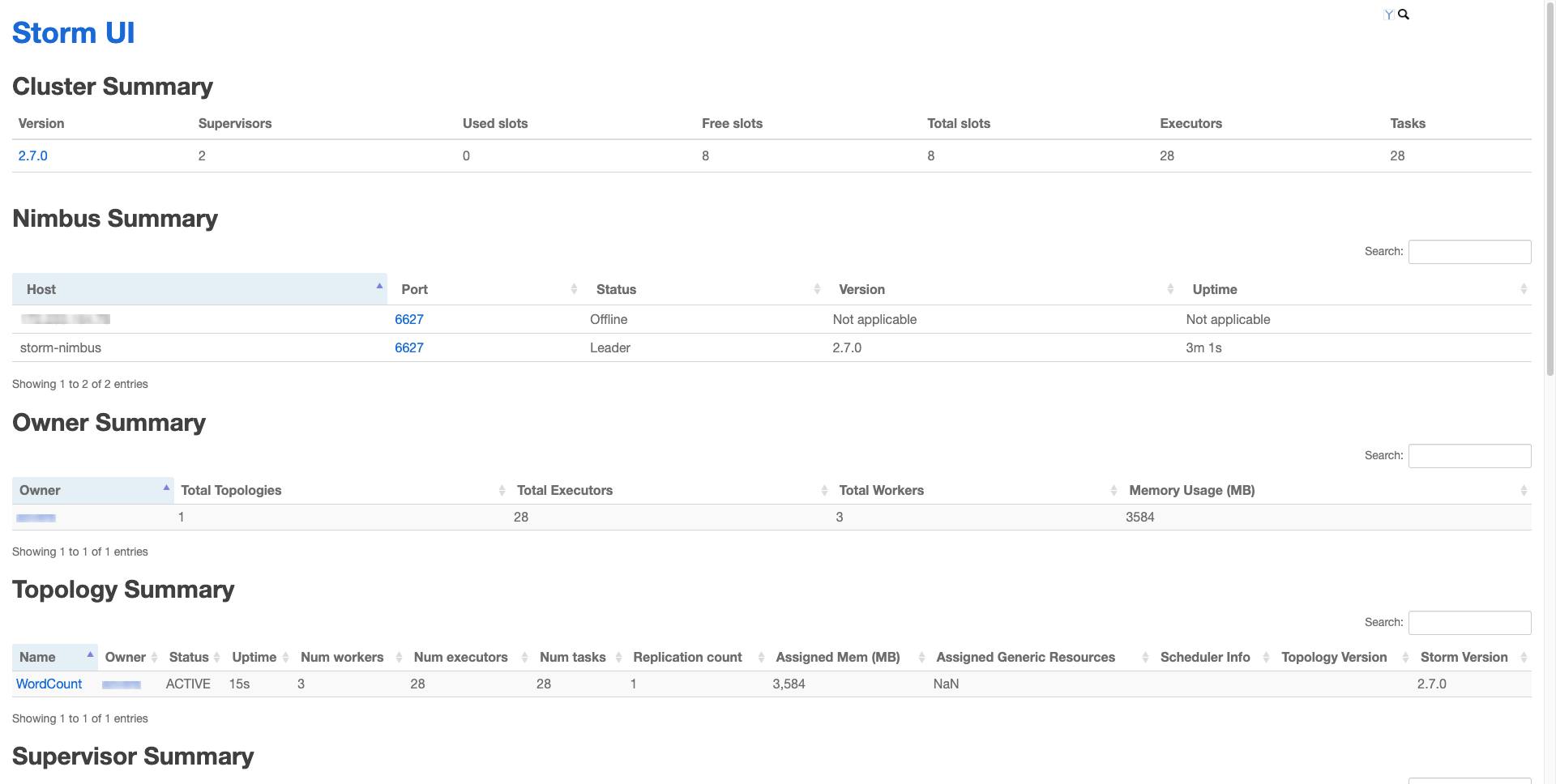

   The Storm UI page should now show WordCount under the Topology Summary section:
